Support the highest video resolution as high as 1080P; Support HDMI 250MHZ clock bandwidth， 2.5 Gbps data bandwidth per channel(all channels 7.5 Gbps data bandwidth); Support the Deep Color of HMDI 12bit(all channels 36bit Deep Color); Support uncompressed audio such as LPCM; Support compression Digital audio signal transmission， such as DTS Digital， Dolby Digital Support HDCP devices.
Specifications:

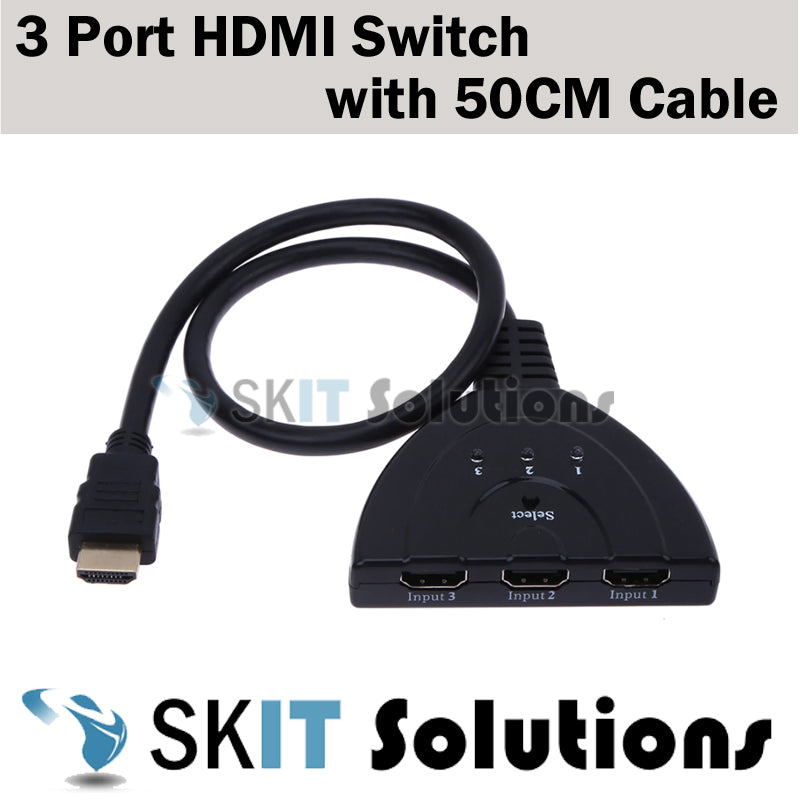

Product name: 3x1 HDMI switcher Input video signal: 0.5-1.0 volts p-p Input DDC signal: 5 volts p-p (TTL) Maximum range of single connection signals: 1920X1200， 1080P Output video signal: HDMI1.3 b + HDCP1.0/1.1 Field frequency: 50/60hz Video amplifying bandwidth: 2.5 Gpbs/250MHz The maximum support length of the input terminal HDMI cable: 15m/49.21ft The maximum support length of the output terminal HDMI cable: 15m/49.21ft Support resolution: alternate (50/60hz): 480i， 576i， 1080i; Line by line(50/60hz): 480p， 576p， 720p， 1080p Audio and video input port: 2xHDMI audio and video output port: 1xHDMI intelligent switching and manual switching dual selection
