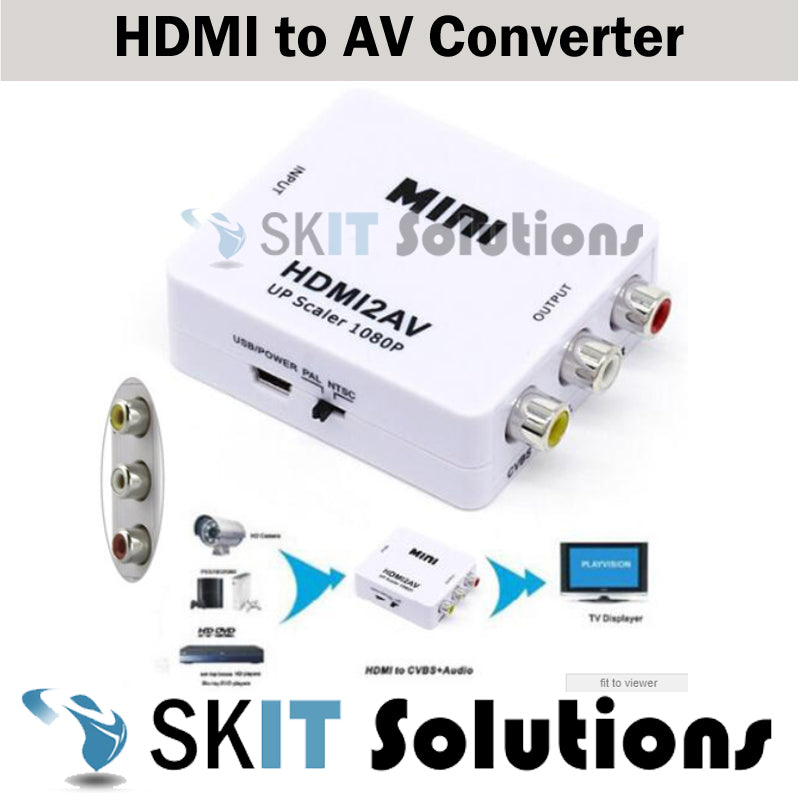

The HDMI to AV signal converter which will convert HDM video signal or audio signal to AV(CVBS) composite video signal and the FL/FR stereo audio signals, while support DVI system sideline signals. To help users convert the high quality of the HDMI video signal into normal CVBS signal(standard-definition 480i, 576i). So that can play on TV, VHS VCR, DVD recorders, etc and support NTSC and PAL two TV format.
No need to install drivers, portable, flexible, plug and play.
Output the audio synchronization with video.
High bandwidth capability support 1920x1080@60Hz.
Compatible HDMI 1.3.
Input Ports: HDMI Type Female
Output Ports: AV RCA
Color: White or Black
Note: The HDMI end is connected to input devices likes DVD Player, X-Box & etc. It won't work if reverse the direction.
Connector A: HDMI Standard Female
Connector(s) B: RCA Female
Input Ports: 1 x HDMI
Output Ports: 3 x RCA (Yellow, White, Red)
Application Example: HD Camera, HD DVD, Displayer, Earphone, Projection
Dimensions: 66mm x 55mm x 20mm (LxWxH)/2.60" x 2.17" x 0.79" (LxWxH) (Approx.)
Cable Length: 0.5m/19.69" (Approx.)
640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1600x1200@60Hz, 1920x1080@60Hz.
180i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz, 720p50/60Hz, 1080I50/60Hz, 1080p/60Hz.
CVBS Output: PAL,NTSC_M, and NTSC_J
1 x HDMI to AV Converter
1 x USB Cable
